Manufacturer	Type	Item No.	Dependent / Independent on Back-Pressure	Body Material	DN Inlet	DN Outlet	Length L1	Length L2

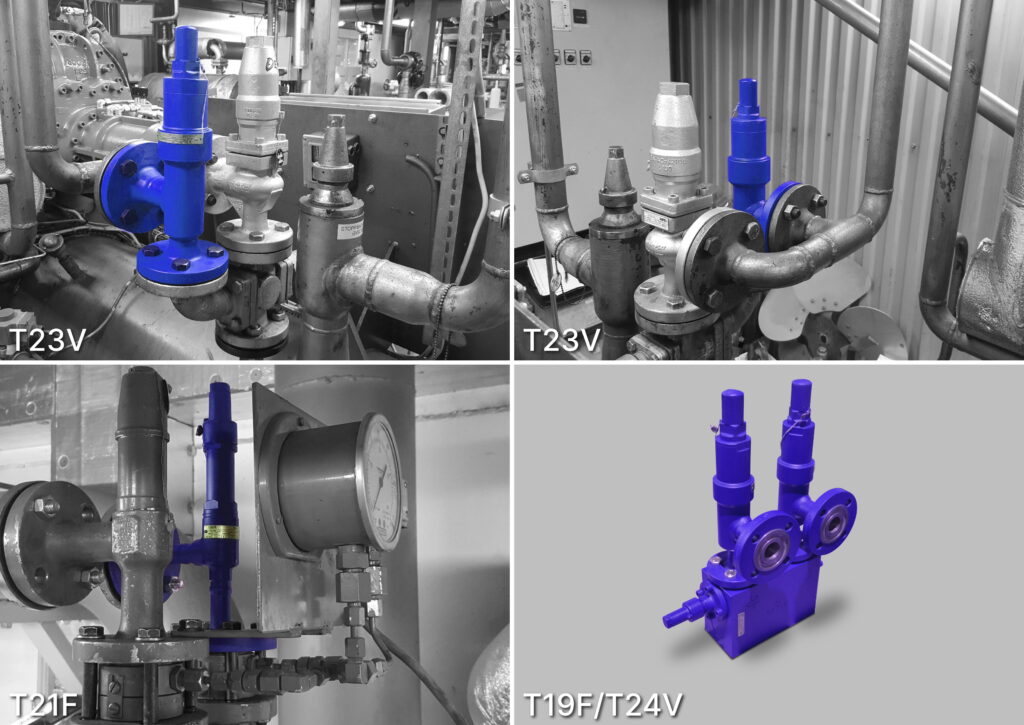

HERL	T23V / T23.1V		dependent	steel	15	25	95	95
AWP	SVAB FL HB	455xxC10H5A10000	dependent	steel	15	25	95	95
AWP	SVAB FL HB	455xxC10H5A1J000	dependent	steel	20	25	95	95
AWP	SVAB FL HB	455xxC11H5A1J000	dependent	steel	25	32	100	100
AWP	SVAB FL HB	455xxC12H5A1J000	dependent	steel	32	40	105	105
AWP	SVAB FL HB	455xxC13H5A1J000	dependent	steel	40	50	115	115
AWP	SVAB FL HB	455xxC14H5A1J000	dependent	steel	50	65	125	125

HERL	T23V.FA / T23.1V.FA		independent	steel	25	32	100	100
AWP	SVUB FL HB	457xxC11H5A1J000	independent	steel	25	32	100	100

HERL	T21F / T21.1 F		dependent	steel	15	25	100	100
AWP	SVUB FL HBJ	455xxC10J5A10000	independent	steel	15	25	100	100
AWP	SVUB FL HBJ	455xxC10J5A1S000	independent	steel	25	25	100	100

HERL	T21F.FA / T21.1F.FA		independent	steel	15	20	80	90
AWP	SVUB FL HBK	446xxC10K5A10J00	independent	steel	15	20	80	90
AWP	SVUB FL HBK	446xxC10K5A10S00	independent	steel	15	25	80	90
AWP	SVUB FL HBK	446xxC10K5A1JJ00	independent	steel	20	20	80	90
AWP	SVUB FL HBK	446xxC10K5A1JS00	independent	steel	20	25	80	90
AWP	SVUB FL HBK	446xxC10K5A1SS00	independent	steel	25	25	80	90

HERL	T21 / T21.1		dependent	steel	1/2"	1"	50	40
AWP	SVUB SE HB	446xxC10H5A4BF00	independent	steel	1/2"	1"	50	40

HERL	T21VA / T21.1.VA		dependent	stainless steel	1/2"	1"	50	40
AWP	SVUB SE HB NIRO	446xxC10H8A4BF00	independent	stainless steel	1/2"	1"	50	40

HERL	T21VA.FA / T21.1VA.FA		independent	stainless steel	1/2"	1"	50	40
AWP	SVUB SE HB NIRO	446xxC10H8A4BF00	independent	stainless steel	1/2"	1"	50	40

HERL	T22V
AWP	SVUB FL HBK	446xxC10H5A10000	independent	steel	15	15	90	90
AWP	SVUB FL HBK	446xxC10H5A1JJ00	independent	steel	20	20	95	95
AWP	SVUB FL HBK	446xxC10H5A1SS00	independent	steel	25	25	100	100
AWP	SVAB FL HB	455xxC11H5A1S000	dependent	steel	32	32	105	105
AWP	SVAB FL HB	455xxC12H5A1S000	dependent	steel	40	40	115	115
AWP	SVAB FL HB	455xxC13H5A1S000	dependent	steel	50	50	125	125
AWP	SVAB FL HB	455xxC14H5A1S000	dependent	steel	65	65	145	145

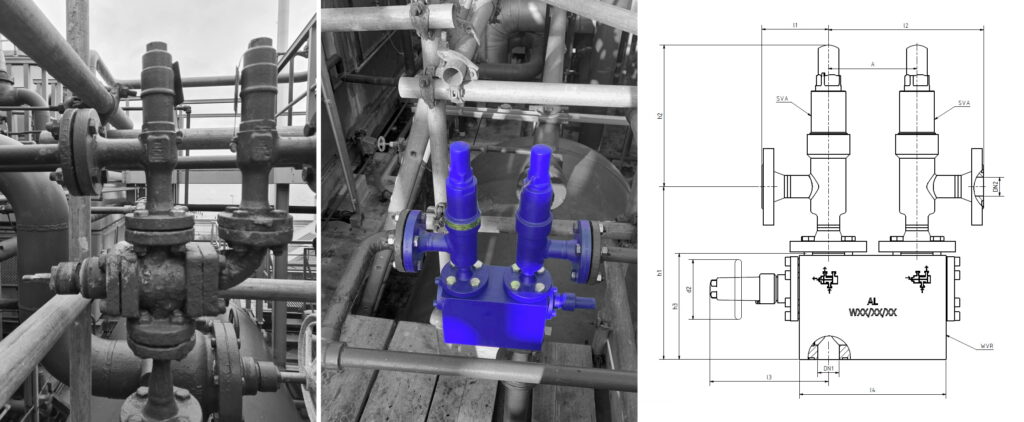

Manufacturer	Type	Item No.	Dependent / Independent on Back-Pressure	Body Material	DN Inlet	DN Outlet	Length L1	Length L2	Length L3	Length L4	Height H1	Height H2	Height H3	Distance A
HERL	T19F / T19.1F		dependent	steel
AWP	WVR-SVAB FL HB	1H8XXBB0D5A1M000	dependent	steel	15	25	100	225	133	204	250	207	150	125
AWP	WVR-SVAB FL HB	1H8XXBB0D5A10000	dependent	steel	25	25	100	233	178	220	260	207	160	133

HERL	T24V / T24.1V		dependent	steel
AWP	WVR-SVAB FL HB	1H8XXB10F5A10000	dependent	steel	15	25	95	220	133	204	244	207	150	125
AWP	WVR-SVAB FL HB	1H8XXBA0F5A10000	dependent	steel	20	25	95	220	133	204	244	207	150	125
AWP	WVR-SVAB FL HB	1H8XXBA1F5A10000	dependent	steel	25	32	100	233	178	220	259	238	160	133
AWP	WVR-SVAB FL HB	1H8XXBB1F5A10000	dependent	steel	32	32	100	278	183	270	284	238	180	173
AWP	WVR-SVAB FL HB	1H8XXBA2F5A10000	dependent	steel	32	40	105	278	183	270	284	246	180	173
AWP	WVR-SVAB FL HB	1H8XXBB2F5A10000	dependent	steel	40	40	105	308	210	308	314	246	200	193
AWP	WVR-SVAB FL HB	1H8XXBA3F5A10000	dependent	steel	40	50	115	308	210	308	314	278	200	193
AWP	WVR-SVAB FL HB	1H8XXBB3F5A10000	dependent	steel	50	50	115	318	216	320	354	278	230	193
AWP	WVR-SVAB FL HB	1H8XXBA4F5A10000	dependent	steel	50	65	125	318	216	320	354	281	230	193
