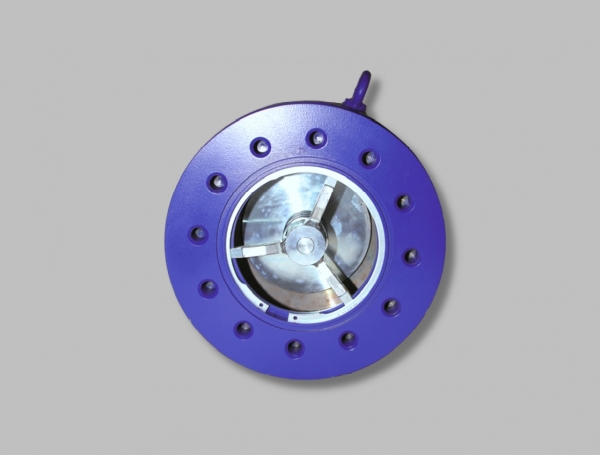

RVZ check valves are designed for installation between two flanges that are attached directly to the valve housing. They are available with or without integrated damping and linear ball bearing.
Check valves open autonomously by the pressure which is exerted by the working medium upon the valve disc. They start to open at a differential pressure of 0.01 to 0.05 bar and are fully open between 0.1 and 0.2 bar. As soon as the flow is interrupted or the flow direction is reversed, the valve closes automatically. The closing function is supported by the elastic force of the spring or by the valve disc’s own weight. RVZ check valves are designed for installation between two counterflanges that are attached directly to the valve housing. With this design the medium flow is not is not being diverged as it is the case for other check valve types. AWP check valves are designed for installation in the refrigerant circulation of industrial refrigeration systems. They are installed on the pressure or suction side of compressors or in pipes in which only one direction of flow is intended.
Design
straightway type
Material
steel or stainless steel
Nominal Size
DN 40-400
Nominal Pressure Level
PS 25, PS 40, PS 63
Temperature Range
-60 °C to +150 °C
Temperature Range for HT Valve Series
-10 °C to +200 °C
Connections
flanged connection as per AWP standard
Additional Information
available with hot gas connection, linear ball bearing and oil drain
