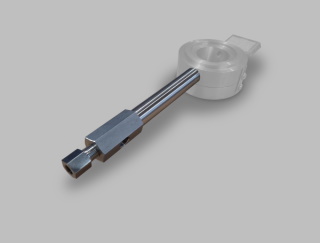

Excess Flow Valves are an additional feature to be used in combination with bursting discs to protect a refrigeration system from overpressure.
The use of excess flow valves is recommended in accordance with fact sheet AD2000 A1 and ASME Boiler & Pressure Vessel Code VIII Div.1 (paragraphs UG 125 through UG 137) when bursting discs or relief valves are being used in series or in combination. Excess flow valves keep the space between safety valve and bursting disc pressureless in case smaller leaks occur. They prevent the build-up of counter pressure. They work with a ball that gets pushed into its seat, if an overpressure occurs, e. g. when the bursting disc opens, thus preventing ventilation and enabling the safety valves to perform as intended. Furthermore pressure manometers and controllers can be connected.
Material
stainless steel
Nominal Size
appropriate for bursting discs DN 15-100
Nominal Pressure Level
DN15-25: PS 25, 40, 63
DN 32-100: PS 40
Temperature Range for Standard Valves
-60 °C to +150 °C
Temperature Range for HT Valve Series
-10 °C to +200 °C
Connections
to be connected to the bursting disc holder via a G1/4″ or NPT1/4″ thread
