To open and close the pipe the ball valve mechanism uses a bored through ball which is rotated horizontally by 90° in relation to the flow direction.

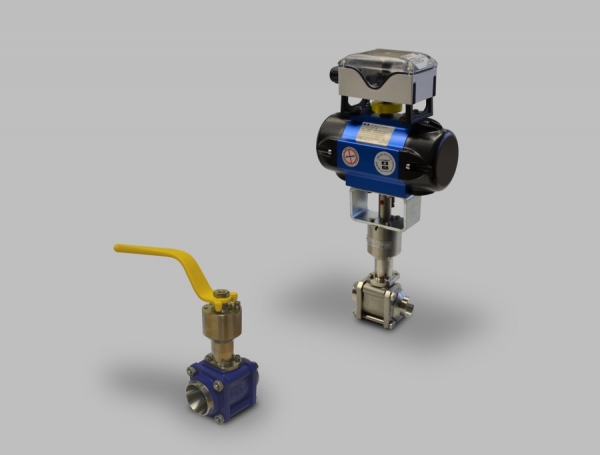

AWP ball valves are designed for installation in industrial heating and refrigeration systems. The closing device is a bored through ball that opens and closes the pipe by horizontal rotation in relation to the flow direction. The 90° rotation is exerted via the shaft and is either by a hand-operated lever or by electric or pneumatic actuators. By default the bore size in the ball is smaller than the inside diameter of the pipe, versions with full clearance are also available upon request.
Design
straightway type
Material
steel or stainless steel
Nominal Size
DN 15-200
Nominal Pressure Level
PS 40
Temperature Range for Standard Valves
-50 °C to +150 °C
Temperature Range for HT Valve Series
-10 °C to +200 °C
Connections
butt welding and flanged ends as per DIN and ANSI
Additional Information
hand-operated lever electric or penumatic actuators
We offer your business dependable, high-quality components for heating and refrigeration plants and machinery. AWP is a reliable partner committed to excellence and the supply of products that have resulted from continuous innovation based on years of experience.
