HRS Service Valves

Service valves with lifting stem, available with various connections. Stem sealing provided by threaded bush.

HRSB Service Valves

Service valves with lifting stem, available with various connections.

HRSN Needle Valves

Service valves with a pointed regulating cone for fine regulation of the medium flow

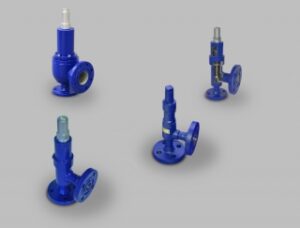

SVA Safety Relief Valves

Safety valves dependent of back pressure, spring-loaded.

SVU Safety Overflow Valves

Safety valves independent of back pressure, spring-loaded.

UVU Overflow Valves

Backpressure independent, spring-loaded overflow valves

TR Thermostatic 3-Way Valves

Devices to manage the compressor circuit regulation at a constant oil temperature.

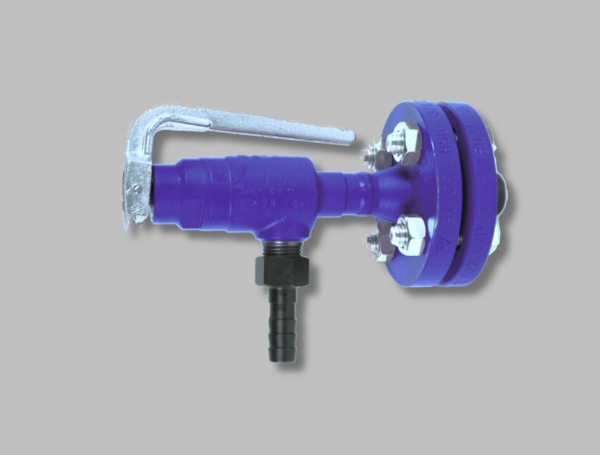

SSO Quick Closing Valves

Valves for oil draining.

ORVA Oil-Pressure Regulating Valves

Valves to maintain a constant differential oil pressure between oil pump and oil separator.

OF Oil Filters

Oil filters clean the oil in the refrigeration circuit.

DOF Double Oil Filters

Oil filters clean the oil in the refrigeration circuit.

WVB 3-Way Valves

3-way valves with lifting stem.

WVR 3-Way Valves

3-way valves with lifting stem.

WVR AL 3-Way Valves

3-way valves in compact design, made of aluminum. Stem sealing provided by screwed-in bush.

Revalco Valves & Spare Parts

In 2007 GEA REVALCO‘s valve production was transferred to GEA AWP.

AVB Shut-Off Valves

Valves that close the pipe by lowering the valve disc onto the valve seat.

AVR Shut-Off Valves

Valves that close the pipe by lowering the valve disc onto the valve seat.

AVR/AVB Shut-Off Valves with Electric Actuator

Valves that close the pipe by lowering the valve disc

RV Check Valves

Check valves open automatically by the pressure which is exerted by the medium upon the valve disc.

RVA Stop Check Valves

Check valves open automatically by the pressure that is exerted by the medium upon the valve disc.

RVAK Stop Check Valves

Check valves open automatically by the pressure of the medium.

RVZ Check Valves

RVZ check valves are designed for installation between two flanges

HRAB Regulating Valves

HRAB regulating valves are designed to regulate the medium flow with a cone on the underside of the valve disc.

HRAR Regulating Valves

HRAR regulating valves are designed to regulate the medium flow with a cone on the underside of the valve disc.

HRAR/HRAB Regulating Valves with Electric Actuator

Regulating valves are designed to regulate the medium flow with a cone on the underside of the valve disc.

BS Bursting Discs

Reverse-acting bursting discs to protect a refrigeration system from overpressure.

Excess Flow Valves

HExcess Flow Valves are an additional feature to be used in combination with bursting discs

SF / SFR Suction Filters

Suction filters with or without integrated check valve function.

SF-AVR / SFR-AVR Suction Filter Combinations

Suction filters either equipped with or without an integrated check valve function and combined with a stop valve.

SFCS Suction Filters

Suction filters with integrated check valve and shut-off valve function.

HSX High Pressure Float Valve

Self-Regulating valve for optimized condensation conditions.

AK Butterfly Valves

To open and close the pipe butterfly valves use a disc rotated horizontally through 90° in relation to the flow direction.

KV Ball Valves

To open and close the pipe the ball valve mechanism uses a bored through ball which is rotated horizontally by 90° in relation to the flow direction.

KVplus Ball Valves

Ball valves that are especially designed for a pressure rating up to PN 100.

FT Filter Driers

Filter driers are equipped with replaceable adsorption filters to protect refrigeration

HSX High Pressure Float Valve

Self-Regulating valve for optimized condensation conditions.

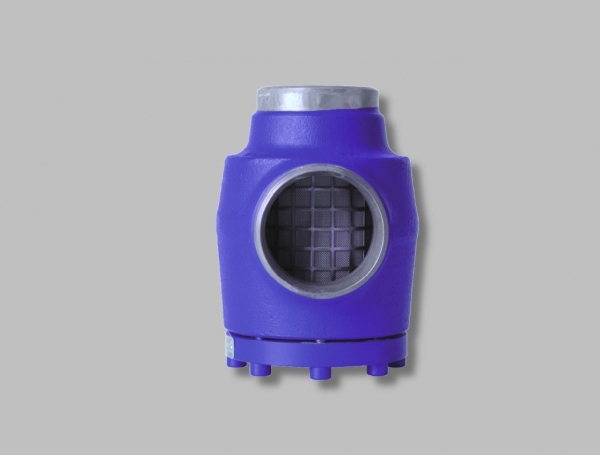

SS Strainers

Strainers are equipped with a replaceable mesh from stainless steel in various mesh sizes.

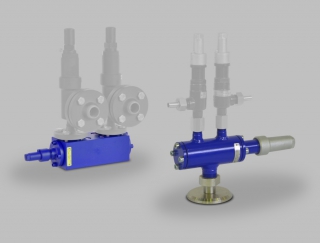

WVR AL SVA / SVU Dual Safety Valves

Dual safety valves consisting of one 3-way valve in compact design

WVR SVA / SVU Dual Safety Valves with Chain Drive

Dual safety valves with two 3-way valves, one on the inlet and one on the outlet

WVR-SVA Dual Safety Valves

Dual safety relief valves, consisting of one 3-way valve and two safety valves, dependent of back pressure.

WVR-SVU Dual Safety Valves

Dual safety overflow valves, consisting of one 3-way valve and two safety valves, independent of back pressure.

DA Flow Indicators

DA Flow Indicators

SGL Sight Glasses

Sight glasses ensure a continuous monitoring of the liquid levels in the system.

AKE/AKP Butterfly Valves with Electric or Pneumatic Actuators

To open and close the pipe butterfly valves use a disc rotated horizontally through 90° in relation to the flow direction.

AVR/AVB Shut-Off Valves with Electric Actuator

Valves that close the pipe by lowering the valve disc onto the valve seat with an electric actuator.

HRAR/HRAB Regulating Valves with Electric Actuator

Regulating valves are designed to regulate the medium flow with a cone on the underside of the valve disc.

KVE/KVP Ball Valves with Electric or Pneumatic Actuators

To open and close the pipe the ball valve mechanism uses a bored through ball which is rotated horizontally by 90° in relation to the flow direction.

GPV Gas-Powered Valves

Valves to drain the oil collection container into the oil return circuit.

RVD Constant Pressure Valves

Regulating devices to ensure appropriate minimum differential pressure.

RVR Constant Pressure Valves

Constant pressure valves with check valve function.

UVA Overflow Valves

Back pressure dependent, spring-operated overflow valves. All overflow valves can also be used for refrigerator oil applications.

UVR / UVRK Pressure Regulating Valves

Pressure regulating valves to combine several features in one.

Customized Solutions - Creativity, Innovation & Competence

Allow us to assist you with our exceptional personalised services. Our experienced and innovative design and engineering department are eager to help with your “special” requirements.
